7.3 Free Pages

The API for the freeing of pages is a lot simpler and exists to help remember the order of the block to free. One disadvantage of a buddy allocator is that the caller has to remember the size of the original allocation. The API for freeing is listed in Table 7.2.

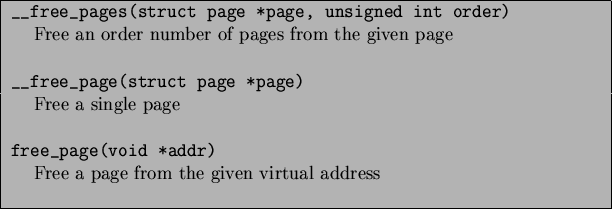

Table 7.2: Physical Pages Free API
\begin{table}\begin{center}
\begin{tabularx}{13.5cm}{\vert X\vert}
\hline
...
...virtual address \\ \\
\par
\hline
\end{tabularx}
\end{center} \end{table}


The principal function for freeing pages is __free_pages_ok() and it should not be called directly. Instead the function __free_pages() is provided which performs simple checks first as indicated in Figure 7.4.

Figure 7.4: Call Graph: __free_pages()
\includegraphics[width=3cm]{graphs/__free_pages.ps}

When a buddy is freed, Linux tries to coalesce the buddies together immediately if possible. This is not optimal as the worst case scenario will have many coalitions followed by the immediate splitting of the same blocks [#!vahalia96!#] although it is worth noting later development kernels have implemented a lazy buddy system [#!barkley89!#] which delays the coalescing of buddies until it is necessary.

To detect if the buddies can be merged or not, Linux checks the bit corresponding to the affected pair of buddies in free_area$\rightarrow$map. As one buddy has just been freed by this function, it is obviously known that at least one buddy is free. If the bit in the map is 0 after toggling, we know that the other buddy must also be free because if the bit is 0, it means both buddies are either both free or both allocated. If both are free, they may be merged.

Calculating the address is a well known concept [#!knuth68!#]. As the allocations are always in blocks of size 2$^k$, the address of the block, or at least its offset within zone_mem_map will also be a power of 2$^k$. The end result is that there will always be at least k number of zeros to the right of the address. To get the address of the buddy, the kth bit from the right is examined. If it is 0, then the buddy will have this bit flipped. To get this bit, Linux creates a mask which is calculated as


\begin{displaymath}\mathrm{mask} = (\sim0 << \mathrm{k}) \end{displaymath}

The mask we are interested in is


\begin{displaymath}\mathrm{imask} = 1 + \sim \mathrm{mask} \end{displaymath}

Linux takes a shortcut in calculating this by noting that


\begin{displaymath}\mathrm{imask} = -\mathrm{mask} =\ 1 + \sim \mathrm{mask} \end{displaymath}

Once the buddy is merged, it is removed for the free list and the newly coalesced pair moves to the next higher order to see if it may also be merged.
